Use these 20DP Pinion Gears by installing on a motor shaft to transfer the rotational output from the motor to other mechanical systems such as drive gearboxes.

• Description
• Specifications
• Documentation

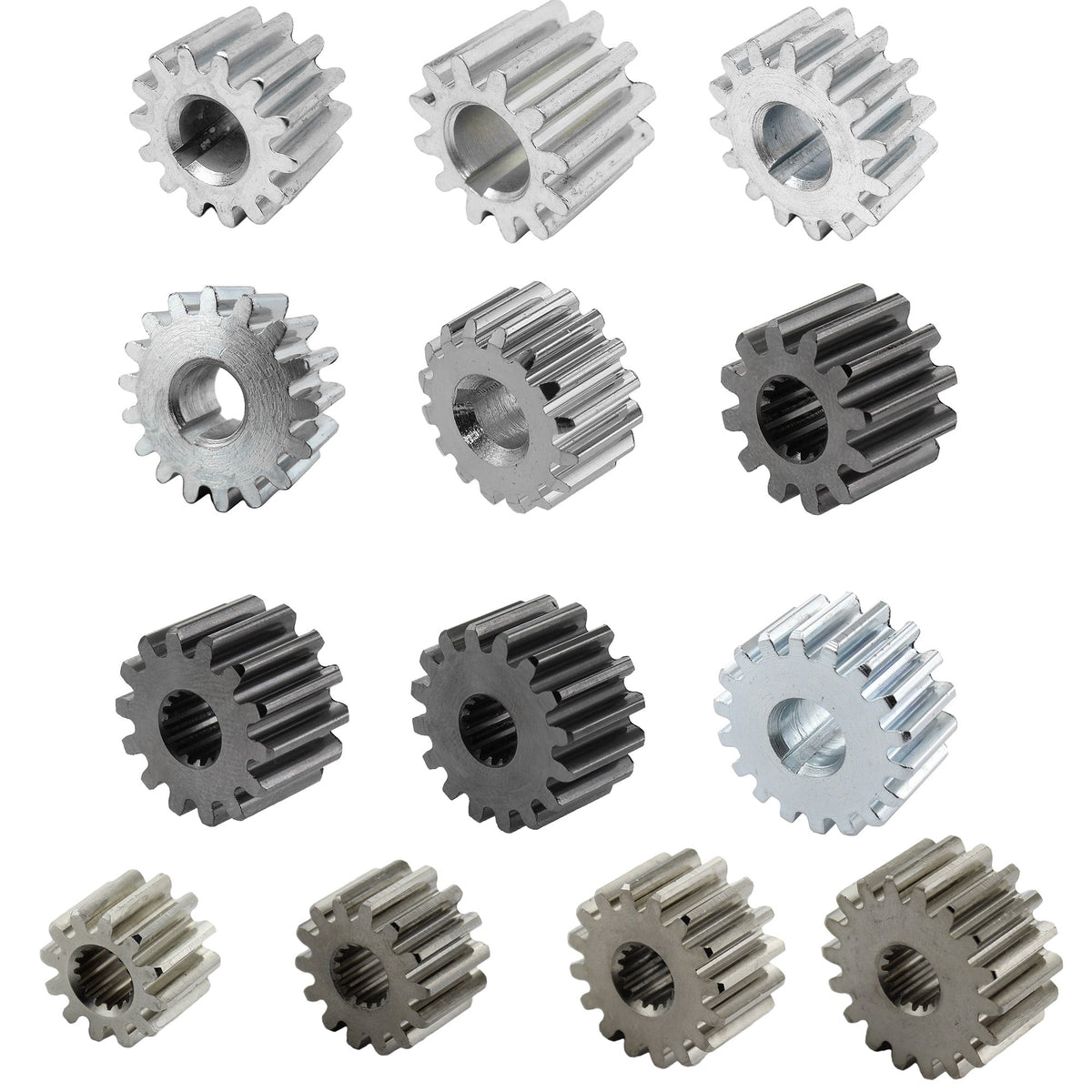

• These 20DP Pinion Gears are used by installing on a motor shaft to transfer the rotational output from the motor to other mechanical systems such as drive gearboxes. Gears with an 8mm Round Bore require a key (am-1121) to transfer torque from the motor to the gear.

  Part Number	Tooth Count	Bore	Outside Dia (in.)	Pitch Dia (in.)	Weight (lbs)	Width (in)
  am-0741	12	8mm Round	0.7	0.6	0.03	0.52
  am-0034	14	8mm Round	0.8	0.7	0.04	0.5
  am-0259	15	8mm Round	0.85	0.75	0.05	0.375
  am-4075	16	8mm Round	0.9	0.8	0.06	0.5
  am-2357	17	8mm Round	0.95	0.85	0.05	0.375
  am-4880	18	8mm Round	1.0	0.9	0.08	0.5
  am-4146	12	Falcon Spline	0.7	0.6	0.03	0.5
  am-4147	14	Falcon Spline	0.8	0.7	0.04	0.5
  am-4201	16	Falcon Spline	0.9	0.8	0.06	0.5
  am-5628	12	Kraken Spline	0.7	0.6	0.03	0.5
  am-5629	14	Kraken Spline	0.8	0.7	0.04	0.5
  am-5631	16	Kraken Spline	0.9	0.8	0.06	0.5
  am-5633	18	Kraken Spline	1	0.9	0.08	0.5

• • Bore: 8 mm [0.31 in.] Round, Falcon Spline, Kraken Spline
  • Diametral Pitch: 20
  • Finish: Zinc Plated
  • Material: 4140 Steel
  • Pressure Angle: 14.5°
